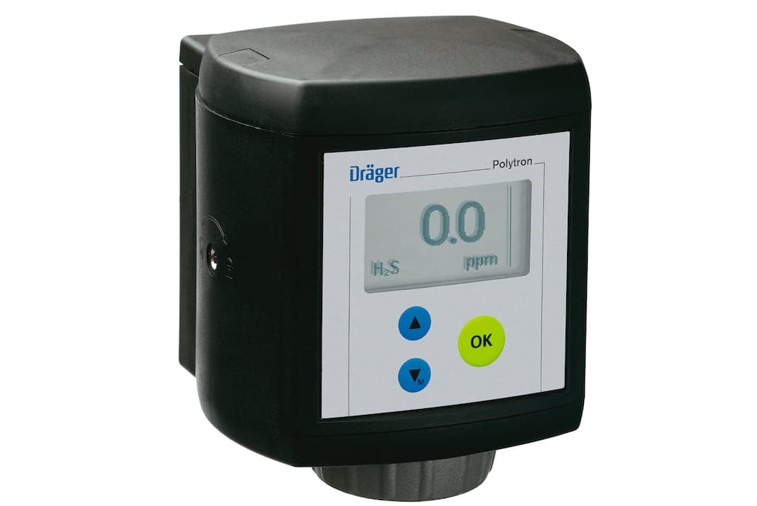

Dräger Polytron® 7000

The Dräger Polytron, 7000 is a gas detector that can satisfy all toxic and oxygen gas measurement applications on a single platform.

It is meeting the requirements of the compliance market as well as the high specification requirements of customized solutions.


Easy operation

Dräger developed the simple and structured software menu of the Polytron 7000 in collaboration with its customers. The big graphic display shows status information with the help of icons and plain text, and guides the user through calibration and configuration.

Communication interfaces

The wide range of outputs, 4 to 20 mA, HART®, LON, PROFIBUS® or FOUNDATION Fieldbus, enables the use of the Polytron 7000 on either a control system from the Dräger Regard family, or third party control systems. The modular design allows for the subsequent retrofit onto any of the mentioned interfaces.
Remote Sensor
With the Polytron 7000 remote sensor adaptor and lead it is possible to mount the sensor up to 30 metres from the polytron 7000 transmitter. This enables the user to read and operate the transmitter from a safe area, or detect toxic gasses and oxygen levels in difficult to reach areas, whilst still being able to view and configure the Polytron 7000 from a convenient location. A duct mount kit enables the remote sensor to be mounted direct in elevated pipe work.

Relay module

The Dräger Polytron 7000 can be equipped with a relay module. With two gas alarm relays, and one fault alarm relay, the transmitter can either be used as a stand alone gas detector with no need for a controller; or alarm devices can be activated locally saving costs in cabling to and from a controller. The analogue signal can still be transmitted back to a controller if desired. (Not suitable for use in hazardous areas)

Intelligent sensors
The Dräger Polytron 7000 can detect over 100 different gases. DrägerSensors are specifically designed for the demands of 24 hours per day, 365 days per year operation. The large DrägerSensor size gives them their renowned long life. The built-in sensor data memory containing all the relevant gas and calibration information, together with on board temperature and pressure compensation gives the DrägerSensor its unsurpassed measurement performance. This also allows the Polytron 7000 to accept pre-calibrated sensors, with minimal operator intervention, the Dräger Polytron 7000 is a virtually maintenance free transmitter.
Software options
With three different software dongles, a range of functions are incorporated into the transmitter adjusting it to user or application specific requirements.With the sensor test dongle, the Dräger Polytron 7000 performs many different patented sensor tests that ensure the reliability and functionality of the sensor and gas detection system. With the new sensor diagnosis function (including the sensor test), operational demands and the remaining sensor life time is estimated so that maintenance and exchange schedules can be created. A data and event saving option is integrated into the data dongle. This saves the measured values and events such as alarms and warnings. The data can be downloaded onto a PDA m515-Ex via an IR interface and evaluated on a PC with the Dräger GasVision softwareor at the push of a button, a 15 minute concentration history is shown on the transmitter display.
Pump module
The inclusion of a pump module enables the Polytron 7000 to draw gas samples from difficult to reach areas, the gas sample is then passed across the DrägerSensor for detection. The pump unit, like all accessories in the Polytron 7000 range is modular, and can be retrofitted into existing transmitters. (Not suitable for use in hazardous areas)

Additional information

Key Facts

Fixed Type Transmitter
Response time <= 8 seconds
Cable entry M20
Display Yes
Intrinsic Safety Yes
Flameproof No
Increased Safety No
4-20 mA Yes
Bus Yes
Wireless No

Technical Data

Display Yes
Weight 0.9 Kg
Dimensions (W × H × D) 0.17×0.14×0.13 m
Degree of protection IP66/67
Power Supply 16.5 to 30 V DC 2-wire
Temperature (operation) -40°C – 65°C
Humidity 0 to 100 % r.h., non-condensing
Pressure (hPa) 700 – 1300
Housing Material Glass fiber reinforced polyester (GFRP)


CE Yes
Performance approval No
Shipping approval No
UL Yes
