Dräger Saver PP

The Saver PP Emergency Escape Breathing Apparatus allows safe, effective and uncomplicated escape from hazardous environments, even if H2S is present.

Simple to put on and featuring automatic operation, this positive-pressure breathing device features an integrated full-face mask and can be used in conjunction with other safety equipment such as ear protectors or helmets.


When time is of the essence

 In emergency situations, conditions can deteriorate rapidly. The air is suddenly filled with smoke or toxic fumes and rapid escape is the only available option. The Dräger Saver PP was designed for use by trained personnel. When opened, the Dräger Saver PP is automatically activated and begins feeding a continuous supply of compressed air to the lung demand valve. The Saver PP gives the wearer the precious additional time needed to exit the area safely.

Highly visible, even under adverse conditions

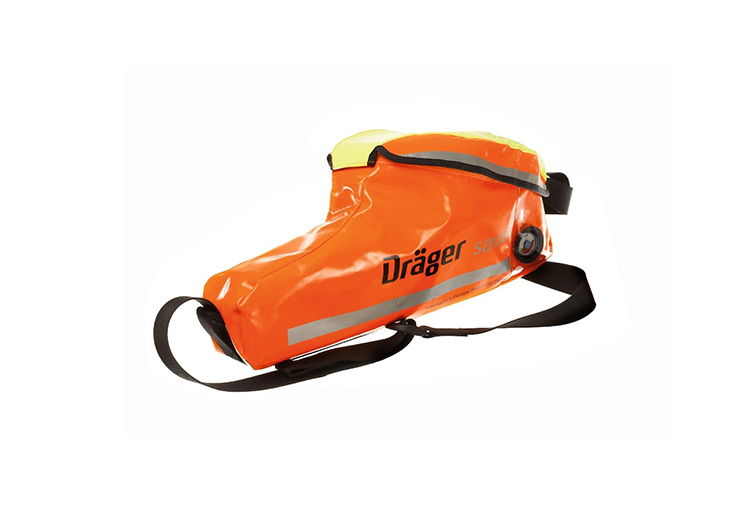

Available with either a soft bag or hard case, the Saver PP can be easily wall-mounted in strategic locations in potentially hazardous areas. Both black anti-static cases or bright orange bags feature photoluminescent panels and reflective stripes for enhanced visibility, even under low lighting conditions. The Saver PP is compact and lightweight and can be worn either across the chest or over the shoulder. Made from highly resistant materials, it is washable, flame retardant and allows water to drain freely.

Up to 15 minutes of lifesaving air

The Dräger Saver PP utilizes a simple, fail-safe reducer system with excellent flow characteristics. It can be equipped with cylinders which can hold either a 10 or 15 minute supply of air. The unit can easily be reset following a false alarm. Cylinders can be refilled without the need for special tools.

Panorama Nova full-face mask

The Panorama Nova full-face mask which comes with the Saver PP is another highquality product manufactured by Dräger. This reliable full-face mask features low exhalation resistance, provides excellent peripheral vision and is self-defogging. The elastic head harness is fast to put on in an emergency and holds the mask securely in place, even under strenuous conditions. The mask can be worn together with ear protectors and helmets.

Integrated hose for connection to external air supplies

There is an option for the Saver PP to feature an integrated air hose for connection to external mid-pressure air supplies, commonly found in muster stations and in emergency assembly areas. This feature provides the user with potentially lifesaving protection in prolonged escape situations. Hose attachment and detachment are quick, safe and easy. Available connections are CEJN as standard and Forster or Hansen optional.

Low-maintenance, low cost protection

Unless otherwise specified by local regulations, the Dräger Saver PP should require little to no service or maintenance for the first 10 years. A transparent window on both the soft bag and hard case lets you check the cylinder pressure gauge easily without unpacking the unit. Checks should be performed at regular intervals. You can then rely on the Dräger Saver PP to be there for you when you need it.

Conforms to relevant standards and norms

The Dräger Saver PP complies with the essential health and safety requirements of the PPE Regulation (EU) 2016/425 and is tested and designed in accordance with EN402:2003, DNV Certificate of Fire Approval and DNV Certificate of Type Approval. It also complies with SOLAS Chapter II-2, the Marine Equipment Directive, the Pressure Equipment Directive and ISO 23269-1:2008. Hard case and anti-static soft bag versions are also suitable for use in explosive atmospheres (zone 0).

High protection against H2S

highest concentrations of H2S seen in Oil & Gas applications across the world.

The Saver PP H2S has been tested by a third party test house using a realistic simulation gas with proprieties and behaviour of H2S to allow representative testing, to prove simulated work protection factors of a minimum 90,000 ppm. This confirms the suitability to safely and reliably protect workers escaping from areas that are contaminated up to 450,000 ppm H2S without exceeding the STEL1 of 5 ppm2.

Optionally, a carbon composite cylinder offers a lighter weight alternative for greater working flexibility and meet a range of international standards in different industries across the world.

1 short term exposure limit

2 Please consider your local regulations.

Cold temperature option down to -30 °C

There is an option for a cold temperature variant which offers the user protection in temperatures down to -30 °C up to +60 °C increasing the operating range. This option is available in stand orange bag as well as the antistatic black bag offering even greater protection in extremely cold temperatures.

Additional Information

Key Facts

Product Type Positive pressure emergency escape device with an integrated full-face mask
Protection against Suddenly occurring toxic gases and/or lack of oxygen
Escape time 10 or 15 (depending on the model)
Packaging options Soft Pack (dust protection IP5); Hard Case (splash water protection IP54)
High H2S protection No
Kind of cylinder Saver PP10: 2 L 200 bar (aluminium); Saver PP15:3 L 200 bar (steel); Saver PP15 CC: 3 L 200 bar (carbon composite)

Technical Data

Weight 7.6 Kg

Packaging and carrying options

Soft bag Yes
Hard case Yes
Antistatic case Yes
Wall mounting Yes
Wearable als chest bag Yes
Wearable over the shoulder Yes

Carrying options

Wall mounting Yes


Comb. with spectacles and facial hair No
Comb. with ear protectors or helmets, etc. Yes
Neck seal No
Cold temperature option -30 °C No


EN1146 (2005) No
EN 402:2003 Yes
DNV GL Certificate Yes
SOLAS Chapter II-2 Yes
Marine Equipment Directive Yes
ISO 23269-1:2008 Yes


Product Datasheet
