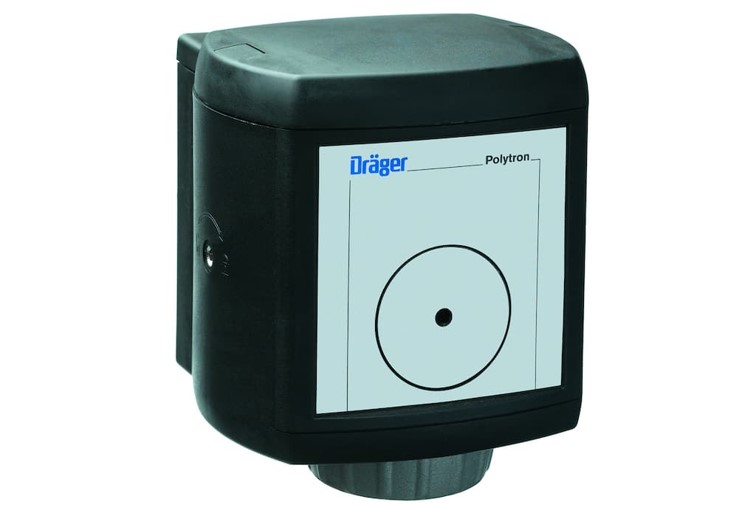

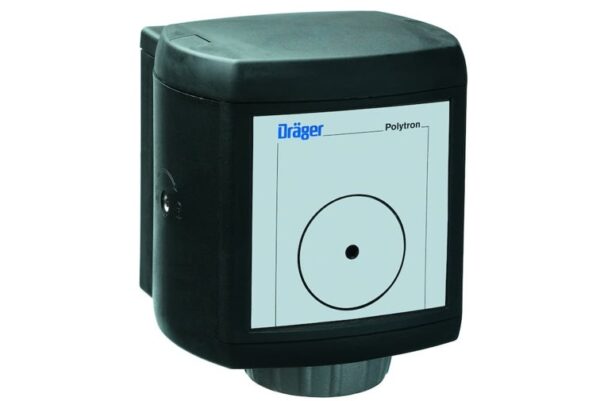

Dräger Polytron® 3000

The Dräger Polytron® 3000 is an intrinsically safe gas detector for the continuous monitoring of more than 60 toxic gases and oxygen in ambient air.

It is the part of a new generation of gas detectors developed on a modular platform. Communication to the central control system is done via a 4 to 20 mA signal.



Simple, quick installation

The Polytron 3000 consists of two components, the docking station, for mechanical and electrical installation, and the Polytron 3000 transmitter. The docking station can be mounted and wired in advance, guarded against rain and dust by a modular cover until time of commissioning. During commissioning, the Polytron 3000 is simply inserted into the docking station and secured with a quick-quick lock mechanism. After inserting the sensor, the system is ready for operation.
Wide range of applications
With its exceptional electromagnetic compatibility and a variety of mounting options, the CE marked Polytron 3000 is suitable for many different areas of application ranging from chemical to the semiconductor industries.
Easy to operate and maintain
The operation and maintenance of the Polytron 3000 is easy. The tried and tested DrägerSensor is equipped with an integrated data memory that contains all calibration information. This allows the Polytron 3000 to accept a pre-calibrated sensor, speeding up maintenance or sensor change. If preferred, the sensor can be field calibrated in the transmitter.
Explosion Protection
Approvals for worldwide use including, ATEX, IECEx, UL, CSA and temperature range from -40 to +65°C, Protection class (IP66/67).

Additional information

Key Facts

Fixed Type Transmitter
Cable entry M20
Display Yes
Intrinsic Safety Yes
Flameproof No
Increased Safety No
4-20 mA Yes
Bus No
Wireless No

Technical Data

Display Yes
Weight 0.9 Kg
Dimensions (W × H × D) 0.17×0.14×0.13 m
Degree of protection IP66
Power Supply 12 to 30 V DC, 2-wire
Temperature (operation) -40°C – 65°C
Humidity 0 to 100% r.h., non-condensing
Pressure (hPa) 700 – 1300
Housing Material Glass fibre reinforced polyester (GFRP)


CE Yes
Performance approval No
Shipping approval No
UL Yes


Product Datasheet  More than the sum of their components
