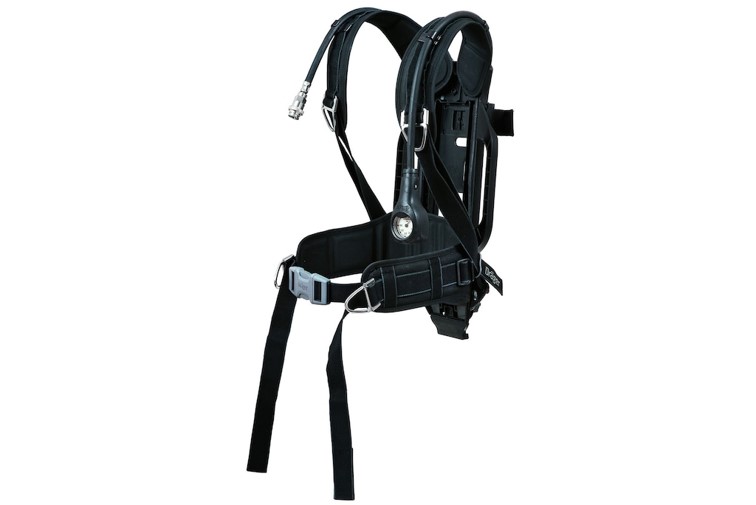

Dräger PSS® 5000

The Dräger PSS® 5000 SCBA is a high-performance breathing apparatus for the professional firefighter.

Combining advanced ergonomics with a wide range of configurable options, the Dräger PSS® 5000 provides the user with the comfort and versatility to meet the demands of first responders whenever breathing protection is required.

Benefit

Ergonomic carrying system

The Dräger PSS 5000 has been designed to be not only comfortable but also extremely stable during use in harsh firefighting environments. Incorporating a rigid harness connection to a fixed-height back plate, advanced harness materials and a pivoting waist belt, the Dräger PSS 5000 remains in position regardless of the task in hand.

Advanced harness choice To allow the breathing apparatus to be tailored to the required application, the Dräger PSS 5000 utilizes state-of-the-art harness materials offered in a choice of 2 harness options:

The Dräger Standard (DS) Harness is a cost effective option for everyday use, offering a high level of comfort and durability. Easy to don and doff materials and simple pull forward and pull down adjustment mechanisms make the DS harness a versatile option for a wide variety of applications.

The Dräger Professional (DP) Utilizes materials to withstand the high wear and tear that firefighters face daily, whilst providing an enhanced level of durability over the DS harness. Incorporating hardwearing stainless steel buckles and long-life Aramid blend webbing, the DP is ideally suited to extended wear and frequent use.

Service friendly & easy to maintain

To keep downtime and costs to a minimum during service and maintenance, the Dräger PSS 5000 incorporates a number of unique design features

‒ Dräger’s innovative Harness “slide and lock” mechanism facilitates fast and simple harness and waist pad connection/removal from the back plate, without the use of tools

‒ The first stage reducer snap fit connection allows the pneumatics to be fitted or removed quickly and easily from the set Benefits Dräger PSS® 5000 | 03

‒ “Push in and out” hose clips allow swift removal of hoses from the harness pads for cleaning, without the need to remove the clip itself

‒ Closed, single piece harness and waist pad design to prevent excessive water absorbtion, reducing cleaning and drying time

Integrated and versatile hose routing

To minimize the risk of snagging and to guard against physical damage, both the gauge and air supply hoses are integrated within channels in the Dräger PSS 5000 back plate. The LDV, Gauge and Rescue hoses can now be routed over the left and/or right shoulders (2 hoses per side), allowing the Dräger PSS 5000 to be configured to any standard. Conventional waist mounted hoses can also be fitted making the Dräger PSS 5000 one of the most versatile SCBA’s available.

Downloads

Product Datasheet Engineered for Safety

Additional Information

APPLICATION Fire Fighting
HEAVY DUTY HARNESS Yes
PIVOTING WAIST BELT Yes
SLIDING WAIST BELT No
HEIGHT ADJUSTMENT No
REFLECTIVE SHOULDER STRAPS No
MANUALLY ACTIVATED PASS Yes, optional
HEAD UP DISPLAY (HUD) No
BUDDY LIGHTS No
TIME-TO-WHISTLE CALCULATION No

Technical Data

OPERATING TEMPERATURE -30°C – 60°C
WEIGHT (BACKPLATE & HARNESS) 3.85 Kg
INPUT PRESSURE 0 -300 bar
BATTERY DURATION > 365 hrs normal use (Bodyguard 1500)

Interior design & harness

HEIGHT ADJUSTMENT No

Lung Demand Valves

COMPRESSED AIR CYLINDERS Yes
ONE CYLINDER CONFIGURATION Yes
TWO CYLINDER CONFIGURATION Yes

Full Face Masks

FPS 7000 Yes
PANORAMA NOVA Yes

Communication systems

FPS 5000-COM Yes
FPS 7000-COM Yes

Complementary products

PSS SAFETY BELT Yes
REFLECTIVE KIT Yes, optional
VALVE GUIDE PROTECTOR Yes, optional
ADD. MEDIUM PRESSURE HOSES Yes
CHARGE-AIR CONNECTION Yes. optional

Approvals

EN 137:2006 (TYPE 2) Yes
VFDB 0802 (RA, PE, ESA) Yes
GOST Yes
AUS/NZ Yes
NFPA NIOSH No
