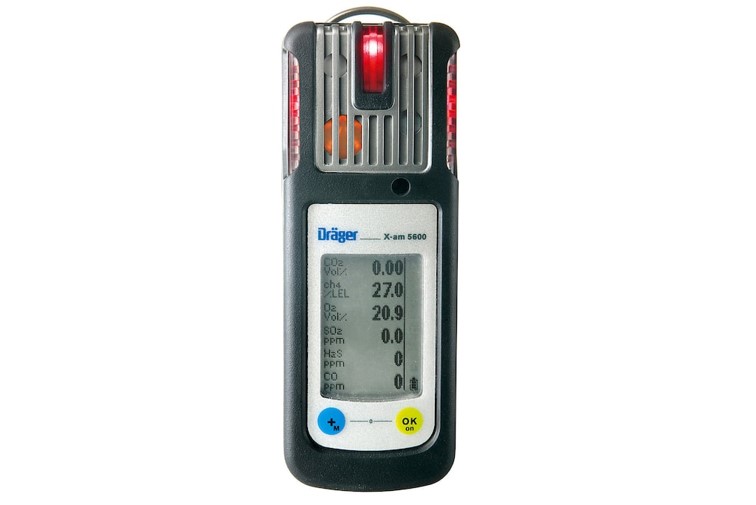

Multi Gas Detector – Dräger X-am® 5600

Featuring an ergonomic design and innovative infrared sensor technology, the Dräger X-am 5600 is the smallest gas detection instrument for the measurement of up to 6 gases.

Ideal for personal monitoring applications, this robust and water-tight detector provides accurate, reliable measurements of explosive, combustible and toxic gases and vapors as well as oxygen

Benefit

Multi-gas detector

  • ​1 to 6 gas detection device
  • for personal air monitoring
  • detection of explosive, flammable and toxic gases as well as vapours and oxygen

Small yet robust

Small, light and easy to use – the robust and water-tight gas detector X-am 5600 is designed for single-handed operation in tough industrial environments. Water- and dustproof according to IP 67 and with an integrated rubber boot, the device provides optimal functionality even under harsh conditions.
Durable infrared technology
Thanks to the high stability and a resistance to contamination, Dräger infrared sensors can generally be used for up to eight years. This advanced technology reduces the cost of ownership considerably because less replacement sensors are needed. In addition, a sensor calibration is only necessary every 12 months which reduces maintenance costs.
Single or dual sensor – accurate measurement results
The infrared sensor IR Ex allows the measurement of explosive, combustible hydrocarbons in the range of the lower explosive limit. The infrared sensor IR CO2, with a measurement resolution of 0.01 Vol.-%, provides safe and exact measurements as well as a warning against toxic concentrations of carbon dioxide in the ambient air. For those applications where the reliable measurement of explosive substances and CO2 is specifically needed, the advantages of both can be achieved by a dual sensor (Dual IR CO2/Ex).
Also in combination with Hydrogen
Besides hydrocarbons, hydrogen can also be an explosive gas. Because sensors based on infrared technology do not warn against hydrogen explosion dangers, the gas detector X-am 5600 combines two sensor signals (Infrared Ex and electrochemical H2) for reliable hydrogen detection. The X-am 5600 provides the advantages of poison-free technology to be used in areas where, until now, only catalytic Ex sensors have been used.
Various monitoring possibilities
Thanks to the combination of innovative infrared technology and the latest electrochemical Dräger XXS miniature sensors, this 1-to-6 gas detector reliably detects explosive, combustible and harmful concentrations of O2, Cl2, CO, CO2, H2, H2S, HCN, NH3, NO, NO2, PH3, SO2, O3, Amine, Odorant, COCl2 and organic vapors. With the PC software Dräger CC-Vision, the sensors can easily be exchanged, calibrated or converted to meet the needs of different applications.
Flexible use
An optional external pump which can be operated with hoses up to 30 m or 98 ft. in length is the perfect solution for pre-entry measurements in tanks or pipelines. To monitor entire areas, the gas detector X-am 5600 can be used in combination with the innovative air monitor Dräger X-zone 5000.
Suitable for Ex-Zone 0
The small and reliable gas detector is suitable for use in areas classified as zone 0, which are areas where explosive atmospheres are always to be expected.
Area monitoring
In combination with the Dräger X-zone 5000 the gas detector can be used for various area monitoring applications. Up to 25 Dräger X-zone 5000 units can be automatically interconnected to form a wireless fenceline. This interconnection of the area monitoring devices allows for the fast securing of larger areas, e.g. pipelines or industrial tanks – even within the scope of industrial shutdowns.

Additional information

Key Facts

Measurable gases IR Ex/CO2, O2, CO, H2S, NO2, SO2 + (choice out of 45 sensors)
Sensorports 4
Number of gases 1 – 6
Applications Personal Air Monitoring + Confined Space Entry
Sensortechnology IR + EC

Technical Data

Weight 0.22 Kg
Operation time >12h
Dimensions (W × H × D) 0.05×0.13×0.04 m
Battery type NiMh
Degree of protection IP 67

Features

Dual sensors Yes
CatEx Fullrange No
D-Light No
Internal pump No
X-am Pump Yes
X-zone 5500 Area Monitoring Yes
Bump Test Station Yes
X-dock Station Yes

Approvals

ATEX I M1 Ex da ia I Ma, II 1G Ex da ia IIC T4/T3 Ga
IECEx IECExEx da ia I Ma, Ex da ia IIC T4/T3 Ga
c CSA us Class I Div. 1 Group A, B, C, D, E, F, G T.-Code T4/T3, A/Ex da ia IIC T4/T3 /Ga
CE Yes
GOST (EAC) PO Ex da ia I Ma X, 0Ex da ia IIC T4 Ga X
Performance approval Yes
Shipping approval Yes
