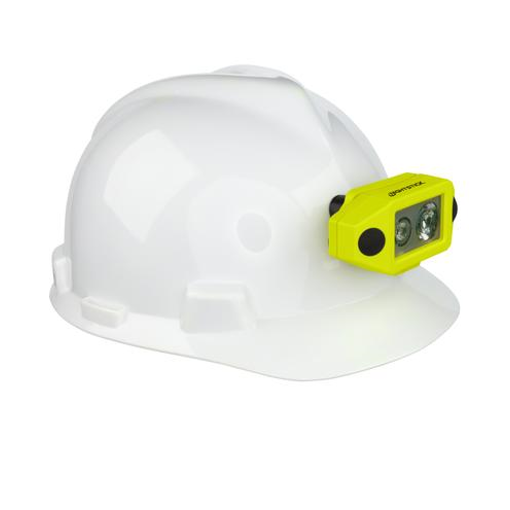

XPP-5460GCX LOW-PROFILE DUAL-LIGHT® HEADLAMP W/HARD HAT CLIP

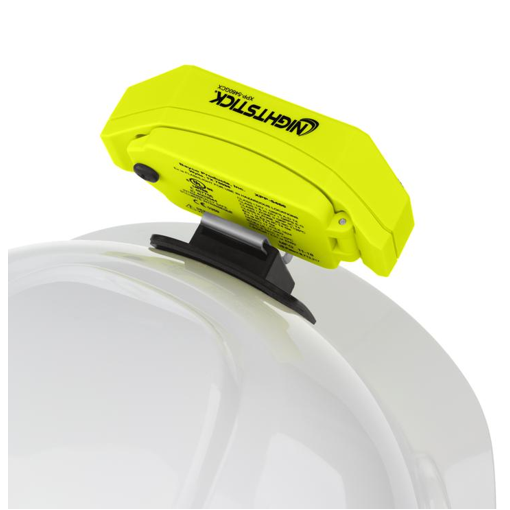

This Intrinsically Safe low-profile Dual-Light® headlamp with hard hat clip is cULus, ATEX and IECEx listed Intrinsically Safe. This headlamp features a multi-position tilt head design and includes an integrated Stainless Clip for attachment to most hard hat mounting brackets. Both the spotlight and the floodlight use LEDs and an advanced TIR lens designed to optimize lumen output and beam pattern.

Front-mounted switches provide easy access to the spotlight for distance illumination, the floodlight for close-up illumination, and Dual-Light® for maximum lighting, versatility, and user safety. Meets the requirements of NFPA-1971-8.6 (2013). Includes a hard hat mount for use on a fire helmet or hard hat. Powered by 3 AAA batteries (included).

FEATURES

  • cULus, ATEX and IECEx listed Intrinsically Safe
  • LED technology
  • Focused high/low-brightness spotlight beam for distance illumination
  • Unfocused high/low-brightness wide-beam floodlight for close-up illumination
  • Dual-Light™ (spotlight and floodlight on at the same time) for maximum versatility
  • Glass-filled nylon polymer housing
  • (TIR) Total Internal Reflection lens designed to optimize lumen output and beam pattern
  • Dual switches located on front of light
  • Adjustable tilt head
  • Hard hat mount for fire helmets and hard hat applications
  • Dustproof/Waterproof
  • Impact & chemical resistant
  • 3 AAA batteries (included)
  • Limited Lifetime Warranty

SPECIFICATIONS

  • UPC: 017398806053
  • Multi-Function: Yes
  • High Lumens: 180
  • Low Lumens: 100
  • Floodlight Lumens: 180
  • Flood Low Lumens: 100
  • High DL Lumens: 200
  • High Beam Distance (m): 106
  • High Candela: 2,800
  • Drop Rating: 2 m
  • Water Rating: IP-67 Dustproof/Waterproof
  • High Runtime (h): 3.5
  • Low Runtime (h): 10
  • High Flood Runtime (h): 3.5
  • Medium Flood Runtime (h): 10
  • High Dual-Light Runtime (h): 3
  • Floodlight Color: White
  • Switch Function: Two switches – right: spotlight, left: floodlight
  • Light Source: LED
  • Case Material: Glass-filled Nylon Polymer
  • Body Color: IS Green
  • Strap/Mount: Helmet Mount
  • Quantity of Batteries: 3
  • Power Source: AAA
  • Package Contents: Headlamp, 3 AAA batteries and hard hat mount
  • US Patent(s) : 9713217
  • Warranty: Limited Lifetime Warranty

DIMENSIONS

  • Length: 3.54 in (90 mm)
  • Width: 1.58 in (40 mm)
  • Depth: 1.875 in (48 mm)
  • Weight: 5.8 oz (166 g)
