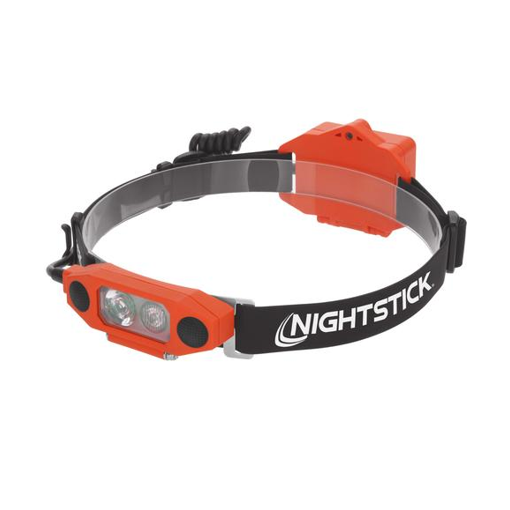

XPP-5462 DICATA® LOW-PROFILE DUAL-LIGHT® HEADLAMP

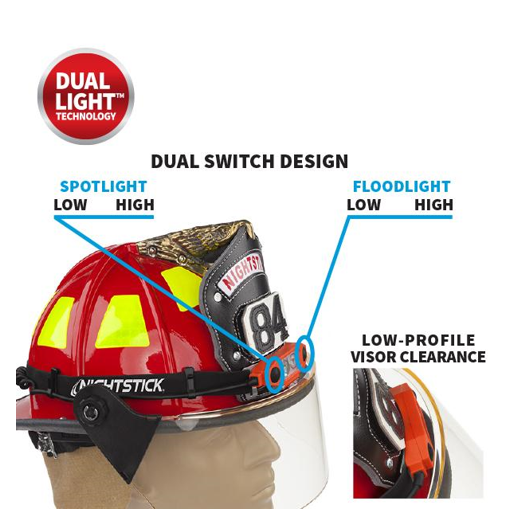

The DICATA® Intrinsically Safe low-profile Dual-Light® headlamp is cULus, ATEX and IECEx listed Intrinsically Safe and is designed specifically to work on fire helmets and hard-hats that have a flip-up face shield. The unique low-profile shape allows the user to work without having to remove the headlamp when raising or lowering their face shield. Made from glass-filled nylon polymer and features a multi-position tilt head design.

Both the spotlight and the floodlight use LEDs and an advanced TIR lens designed to optimize lumen output and beam pattern. Front-mounted switches provide easy access to the spotlight for distance illumination, the floodlight for close-up illumination, and Dual-Light® for maximum lighting, versatility, and user safety.

Meets the requirements of NFPA-1971-8.6 (2013). Includes a heavy-duty rubber head strap for use on a fire helmet or hard hat. Powered by 3 AA batteries (included).

FEATURES

  • cULus, ATEX and IECEx listed Intrinsically Safe
  • LED technology
  • Focused high/low-brightness spotlight beam for distance illumination
  • Unfocused high/low-brightness wide-beam floodlight for close-up illumination
  • Dual-Light™ (spotlight and floodlight on at the same time) for maximum versatility
  • Glass-filled nylon polymer housing
  • (TIR) Total Internal Reflection lens designed to optimize lumen output and beam pattern
  • Dual switches located on the front of the light
  • Adjustable tilt head
  • Battery pack located in the rear of the strap
  • Green colored rear facing LED
  • Heavy-duty rubber strap for fire helmets and hard hat applications
  • IP-67 Dustproof/Waterproof
  • Impact & chemical resistant
  • 3 AA batteries (included)
  • Limited Lifetime Warranty

SPECIFICATIONS

  • UPC: 017398805995
  • Multi-Function: Yes
  • High Lumens: 275
  • Low Lumens: 100
  • Floodlight Lumens: 250
  • Flood Low Lumens: 100
  • High DL Lumens: 310
  • High Beam Distance (m): 120
  • High Candela: 3,660
  • Drop Rating: 2 m
  • Water Rating: IP-67 Dustproof/Waterproof
  • High Runtime (h): 6.75
  • Low Runtime (h): 25
  • High Flood Runtime (h): 7
  • Medium Flood Runtime (h): 25
  • High Dual-Light Runtime (h): 6
  • Floodlight Color: White
  • Switch Function: Two switches – right: spotlight, left: floodlight
  • Light Source: LED
  • Case Material: Glass-filled Nylon Polymer
  • Body Color: Red
  • Strap/Mount: Rubber Strap
  • Quantity of Batteries: 3
  • Power Source: AA
  • Package Contents: Headlamp, 3 AA batteries, and heavy-duty rubber head strap
  • US Patent(s) : 9713217
  • Warranty: Limited Lifetime Warranty

DIMENSIONS

  • Length: 1.25 in (32 mm)
  • Width: 3.75 in (95 mm)
  • Depth: 1 in (25 mm)
  • Weight: 9.3 oz (265 g)

Downloads

Product Datasheet Instruction for Use Warranty
