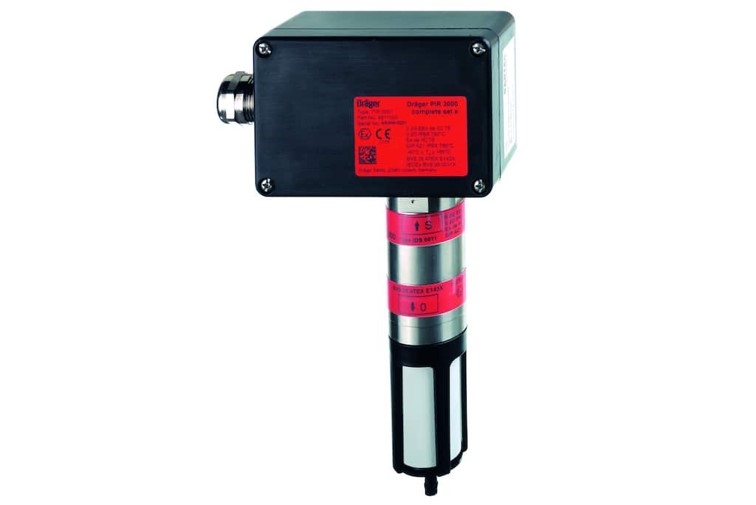

The Dräger PIR 3000 is an explosion proof infrared gas detector for continuous monitoring of combustible gases and vapors.

Based on a stainless steel SS 316 enclosure as well as on a good measuring performance, this transmitter offers an excellent price-performance-ratio.


Failsafe infrared technology and low cost of ownership

The superior performance characteristics of infrared technology (such as poison immune and “fail-safe” operation) have been known and valued in gas detection for many years. The PIR 3000 now offers these performance benefits more affordably, combined with low maintenance costs and a long life time of more than 15 years, cost of ownership is significantly reduced.
Smart and flexible
The PIR 3000 offers a gas library with three gas categories: methane, propane and ethylene. Therefore, nearly all hydrocarbons are detectable. In addition, temperature-compensated linearization curves allow for signal output for individual substances. Through optional accessories – e.g. the process adapter or the duct mount set – a multitude of measuring tasks can be performed professionally.
Suitable for the harshest conditions
Based on its exceptional product quality, the PIR 3000 offers high reliability and excellent measuring performance, in relation to long-term stability. With GRP junction box and 316 stainless steel enclosure, a temperature range of – 40 to + 65 °C (- 40 to + 149 °F) and heated measurement optics driving off compensation from the lens, the PIR 3000 is suitable for all the worlds climate zones.

Performance features

  • Temperature-compensated and non-imaging optics
  • Gas library with 3 gas categories: Methane, propane and ethylene (typical of most hydrocarbons), performance approved in accordance with IEC 60079
  • Performance approval (in accordance with IEC 60079) for 13 further substances
  • Dirt and dust protection through hydrophobic splash guard
  • Analog 4 to 20 mA output signal (universal)
  • Specified temperature range from – 40 °C to + 65 °C / – 40 °F to + 149 °F
  • Unrestricted usage in humid atmospheres
  • Hermetically sealed 316 stainless steel enclosure
  • Slim enclosure design for confined areas of use
  • Long maintenance interval thanks to minimum long-term drift
  • No moving parts
  • Typical life time: 15 years
  • Ex approvals for worldwide use: ATEX, IECEx, UL, CSA
  • Dust ex approval for zone 21 and 22
  • Ingress Protection: IP 65, IP 66 and IP 67

Additional information

Key Facts

Fixed Type Transmitter
Response time <= 30 seconds
Cable entry M25 or 3/4″ NPT
Display Νο
Intrinsic Safety Νο
Flameproof Yes
Increased Safety Yes
4-20 mA Yes
Bus No
Wireless No

Technical Data

Display Νο
Weight 0.55 Kg
Dimensions (W × H × D) 0.17×0.04×0.04 m
Degree of protection IP65/66/67
Power Supply 10 to 30 VDC
Temperature (operation) -40°C – 65°C
Humidity 0 to 100% r.h.
Pressure (hPa) 700 – 1300
Housing Material Stainless steel SS 316


CE Yes
Performance approval No
Shipping approval No
UL Yes
