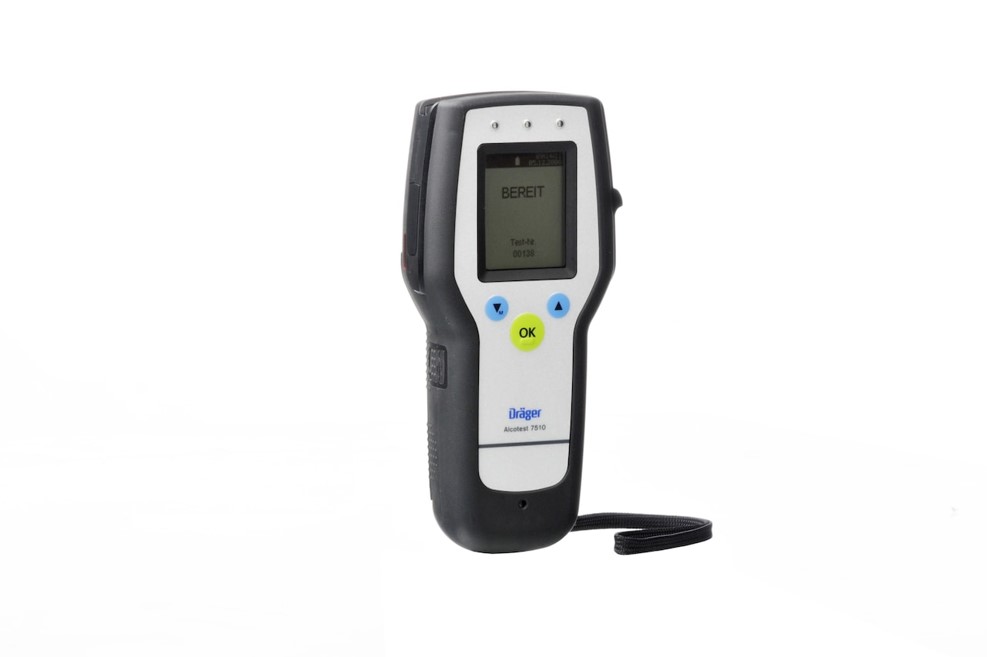

Dräger Alcotest® 7510

The Alcotest® 7510 can in many countries and markets be used as an evidential device.

This compact and robust handheld breath alcohol measuring device is especially designed for advanced screening applications. Ideal for use by police, commerce and industry as an alcohol screening device.

Benefit

Ergonomic design
The Dräger Alcotest 7510 is a compact and robust handheld instrument which, thanks to its special ergonomic design, is suitable for right or left handed users. A non-slip rubber housing offers optimal grip.

State-of-the-art technology
The Alcotest 7510 uses the latest DrägerSensor technology and benefits from an improved sampling method. Depending on the device configuration, it can also detect residual mouth alcohol. A built-in heating element prevents condensation and ensures quick and accurate measurements even at low temperatures. The device is tamperproof and not sensitive to other substances.

Easy to operate
The device has a simple, three button operation. The user controls all measurements via a single push button. A quick and easy menu navigation is possible with two up and down keys. The device incorporates a transflective, high resolution, monochrome graphic display. The backlit display provides clear text messages ensuring legibility in bright sunlight as well as total darkness. Many languages are available. Three light emitting diodes (LEDs) in red, yellow and green support the information shown on the display.

Hygienic and safe
The device complies with high hygiene requirements. The position of the disposable mouthpiece and the molded hand grip automatically provide a safe, hygienic distance between the operator’s hand and the subject. The mouthpieces have a special spacer to avoid contact of the subject’s lips with the instrument. Designed for maximum hygiene, a special mouthpiece ejection system initiates quick and simple mouthpiece ejection.

Comprehensive data management
The Alcotest 7510 is characterized by a comprehensive data management and a wide range of configuration options. The device captures and stores a wealth of information. Using pick lists or free text, the unit can be customised to suit specific needs. The test result is saved with a test number with corresponding date and time.

High flexibility
The Dräger Alcotest 7510 can be used immediately in any environment. Tests can be carried out at temperatures from -10 °C to +50 °C. The flexible data management, the high memory capacity as well as the option of wireless data transfer to the Dräger Mobile Printer or a computer, allow for easy adjustment Benefits Dräger Alcotest® 7510 | 03 to national and international specifications. Via the ambient pressure sensor, the device automatically compensates for the ambient barometric conditions when performing dry-gas tests. The GPS module recognizes the exact geographical location where a breath test is performed. More optional accessories like a stable packaging case and various mounting and charging options are offered.

Downloads

Drugs & Alcohol Brochure Product Datasheet Product IFU

Additional Information

SENSOR TECHNOLOGY EC Dräger Sensor
PRINT OPTION With Dräger Mobile Printer
MOBILE USE Yes
DESKTOP USE Yes, only with A8610
HANDHELD USE Yes
MEASURING RANGE 0 to 3.0 mg/L
TEMPERATURE RANGE -10°C – 50°C
CONTINOUS MEASRMNT OF BRAC No
HEATED BREATH HOSE No
HEATED FUEL CELL Yes
INTEGRATED LOUDSPEAKER Yes
DRY GAS INLET No
BREATH TEMP OPTION No
DISPLAY Transflective LCD

Technical Data

MEASURING RANGE 0 to 3.0 mg/L
DISPLAY Transflective LCD
DISPLAY SIZE DIAGONAL 0.06 m
USER INTERFACE Short Messages
DATA ENTRY With two arrow keys (keyboard only with A8610)
TEMPERATURE RANGE -10°C – 50°C

Regulations

OIML R126 Yes
CE CONFORMITIY EMC Directive Low Voltage Directive RoHS-Directive
